Radio Frequency Identification(RFID) is a wireless technology used to identify and track objects using radio waves. In the subject of Technology, RFID plays a crucial role in improving automation, security, and inventory management across various industries.
- Radio Frequency Identification (RFID) is a technology that uses radio waves to identify and track objects, animals, or people wirelessly.Â
- An RFID system uses a small electronic chip, called an RFID tag, to store information. This tag can be read by an RFID reader from a distance, without needing direct contact or a clear line of sight.
- RFID is a subset of Automatic Identification and Data Capture (AIDC) technologies, which include barcodes and QR codes.
- Unlike barcodes, RFID enables simultaneous, non-contact, and multi-object identification over varying distances.
Why is RFID Important?
- RFID provides a fast, accurate, and contactless way to collect and process data.
- It is widely used in logistics, supply chain management, transportation, healthcare, and defense.
- Efficiency: RFID can improve logistics and inventory efficiency by 30%.
- RFID Market Size: The global RFID market was valued at $11.8 billion in 2021 and is projected to reach $31.5 billion by 2031, growing at a CAGR of 10.2% from 2022 to 2031.
Real-Life Examples of RFID:
- Toll collection systems (e.g., FASTag in India).
- Tracking baggage in airports.
- Anti-theft systems in retail stores.
Historical Context
- The concept of RFID dates back to World War II, where it was used as a form of “friend-or-foe” identification for aircraft.
- The modern use of RFID began in the 1970s, gaining prominence with the invention of affordable and reliable RFID tags in the 1990s.
Comparison of Barcodes vs RFID
| Aspect | Barcodes | RFID (Radio Frequency Identification) |
| Technology | Optical scanning | Radio waves |
| Data Storage | Limited data capacity (8-20 characters) | Can store more data (96 bits to several kilobytes) |
| Line-of-Sight | Requires direct line-of-sight | No line-of-sight needed |
| Read Range | 1-3 feet (0.3-1 meter) | Passive: 3-10 feet, Active: 100-300 feet |
| Speed | Slower (individual scanning) | Faster (multiple tags read simultaneously) |
| Durability | Prone to damage (scratches, dirt) | More durable (resistant to harsh environments) |
| Cost | Low cost (labels and scanners) | Higher cost (tags, readers, setup) |
| Data Modification | Static data (cannot be changed) | Rewritable data in some tags |
| Security | Vulnerable to counterfeiting | Higher security with encryption |
| Applications | Retail, libraries, inventory | Supply chain, logistics, healthcare, asset management |
| Tag Type | Printed on labels | Passive (no battery), Active (battery-powered) |
Automatic Identification and Data Capture (AIDC) Technologies
- Barcodes: Scanned to retrieve information quickly.
- RFID (Radio Frequency Identification): Uses tags and readers to exchange data wirelessly.
- QR Codes: Scannable codes that store more data than barcodes.
- Biometrics: Identifies individuals using fingerprints, facial recognition, or retina scans.
- Magnetic Strips: Found on cards like credit or ID cards to store information.
- Smart Cards: Contain embedded chips to store and process data securely.
Components of an RFID System
1. RFID Tag (Transponder)
A small device attached to the object being tracked. It stores information about the object and communicates with the RFID reader.
Structure of RFID Tag:
- Microchip:
- Stores data, such as a unique identifier for the object. Example: Product serial numbers, passport details.
- Antenna:
- Enables communication by receiving and transmitting radio signals.
- Encapsulation:
- Protects the chip and antenna (made of plastic, glass, or ceramic).
Types of RFID Tags:
- Passive Tags:
- No internal power source; powered by the reader’s electromagnetic signal.
- Cost-effective but with a shorter range (~10 meters).
- Applications: Retail, library book tracking, logistics.
- Active Tags:
- Contains an internal battery for continuous signal transmission.
- Longer range (up to 100 meters) and higher cost.
- Applications: Toll collection (e.g., FASTag), vehicle tracking.
- Semi-Passive Tags:
- Battery-assisted but only activated when in range of a reader.
- Applications: Asset tracking in warehouses.
2. RFID Reader (Interrogator)
The RFID reader is a device that emits radio signals and receives data from RFID tags.
- It generates an electromagnetic field that powers passive tags (or helps active tags communicate).
- After receiving the signal, the reader decodes and sends the data to a computer system for processing.
Types of RFID Readers:
- Fixed readers: Installed at strategic locations like entrances, gates, and warehouses.
- Mobile readers: Handheld devices that can be used for more flexible reading of tags.
3. Middleware or Software
Middleware acts as the intermediary between the RFID hardware and enterprise systems (like databases or application software). It:
- Processes the data from the RFID reader.
- Provides real-time updates for inventory, asset management, and more.
4. Communication Medium
Uses radio waves in different frequency ranges:
- Low Frequency (LF) RFID:
- Frequency Range: : 30 kHz to 300 kHz ( Typical LF RFID systems work with 125 kHz to 134 kHz)
- Range: ~10 cm to 30 cm
- Applications: Animal tracking, access control, and asset management.
- Limitations: Short-range and slower read speeds.
- High Frequency (HF) RFID:
- Frequency Range: 3 MHz to 30 MHz (13.56 MHz)
- Range: ~10 cm to 1 meter
- Applications: Smart cards, public transportation systems, libraries, and contactless payment.
- Limitations: Moderate read range.
- Ultra High Frequency (UHF) RFID:
- Frequency Range: 300 MHz to 3 GHz {860–960 MHz (varies by region)}
- Range:~1 meter to 10 meters (can go up to 100 meters in some cases).
- Applications: Large-scale supply chain management, warehouse automation, and toll collection systems.
- Limitations: Can be affected by interference from metals and liquids.
- Microwave Frequency RFID
- Frequency Range: above 3 GHz, typically around 2.45 GHz and 5.8 GHz.Â
- Read Range: Over 10 meters (up to 100 meters in some cases).
- Advantages: Very long-range capabilities; Fast data transmission; Highly suitable for large-scale or high-speed environments.
- Applications:
- Toll Collection
- Vehicle Identification: Used for automatic vehicle identification in various sectors.
- High-Speed Asset Tracking: Ideal for environments where rapid identification is crucial.
Note 👉FASTag utilizes Ultra High Frequency (UHF) RFID technology operating in the 865–867 MHz frequency range.
RFID Types and Their Applications
| Type | Frequency Range | Read Range | Typical Use Cases |
| Low Frequency | 125–134 kHz | ~10 cm to 30 cm | Animal tracking, access control, asset tracking in libraries |
| High Frequency | 13.56 MHz | ~10 cm to 1 m | Public transport, contactless payment, healthcare tracking |
| Ultra High Frequency | 860–960 MHz | ~1 meter to 10 meters | Supply chain, logistics, inventory management, asset tracking |
| Microwave | 2.45 GHz | ~10 meters to 100 meters | Toll collection, vehicle tracking, smart parking systems |

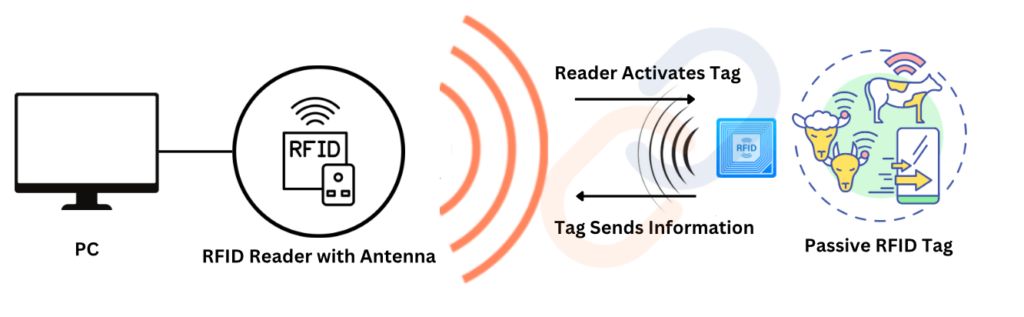

Working Process of RFID
- The RFID reader emits a radio frequency signal.
- The tag’s antenna receives this signal and powers the microchip (in passive tags).
- The tag transmits data, such as a unique identification number, back to the reader.
- The reader processes the data and forwards it to a central system for analysis or storage.
Types of RFID Communication
- Read-Only RFID Tags → Data cannot be changed after programming. Ideal for static information.
- Read/Write RFID Tags → Can be reprogrammed to store new data. Used in loyalty cards, access control.
- Write-Once, Read-Many (WORM) Tags → Data can be written once and read multiple times. Ensures data integrity.
Interference and Signal Issues
While RFID provides a versatile means of identification, its performance can be impacted by environmental factors:
- Metal Objects: Can block or distort radio waves.
- Liquids: Can absorb the radio signals, weakening the range.
- Overlapping Signals: Multiple readers or tags operating on the same frequency may cause signal interference.
Applications of RFID
RFID technology is transforming industries by enabling automated tracking and data management.
a) Supply Chain & Inventory Management
- How it Works: Tags on goods → Scanned at key locations (e.g., warehouses)
- Benefits: Real-time tracking → Automation → Just-in-time stock management.
- Example: Walmart uses RFID for efficient inventory management.
b) Retail & Customer Experience
- How it Works: Tags on products → Triggers promotions & tracks purchases
- Benefits: Faster checkout → Personalized shopping → Accurate inventory
- Example: Zara uses RFID to track stock and reduce theft.
c) Healthcare & Medical Systems
- Patient/Asset Tracking: RFID tags on patients/equipment → Track patient status and treatment. Example: Hospitals use RFID wristbands to ensure correct treatment.
- RFID ensures pharmaceutical authenticity and tracks drug distribution. It prevents counterfeit drugs.
- RFID is used in blood banks to track donated blood and its inventory across various hospitals.
d) Logistics & Shipping
- RFID tags on containers/packages → Track location during transit
- Example: Coal India Limited has implemented RFID technology to track coal production and transportation.
- RFID technology is widely used to track goods along the Delhi-Mumbai Industrial Corridor, optimizing logistics and supply chain efficiency.
- companies like CONCOR use RFID to track containers and cargo, reducing delays and improving inventory accuracy.
e) Toll Collection & Access Control
- RFID tags on vehicles/cards → Automated payments/access
- Benefits: Contactless payments → Security → Faster processing
- Example: India’s FASTag automates toll payments.
f) Agriculture and Livestock Management
- Livestock Tracking: RFID tracks animals with details like age and vaccination records. Example: Radio ear tags for cattle
- Supply Chain Transparency: Real-time tracking of food shipments.
g) Document & Asset Tracking
- RFID tags on documents/assets → Track location & movement
- Example: Libraries and organizations use RFID for asset management.
- Indira Gandhi International Airport (Delhi) uses RFID tags to track luggage in real-time, ensuring efficient baggage handling.
h) Government and Security
- E-passports: Incorporates RFID chips for faster processing and enhanced security.
- Access Control Systems: RFID secures restricted areas by allowing access with a card or badge.
Example: RFID-based office access. - Tracking Law Enforcement Assets: Example- Tracking police vehicles and tools.
i) Smart Cities and Urban Infrastructure
- Smart Cities Mission: RFID-enabled waste management systems and traffic monitoring.
- Public Transportation: RFID technology in smart cards like credit/debit cards.
Benefits and Challenges
| Advantages of RFID | Challenges of RFID |
| Contactless Operation: No need for direct contact or line-of-sight.Real-Time Tracking: Provides accurate inventory management and reduces loss/theft.Automation: Reduces human error and increases efficiency in processes.Long Range: RFID works over a range from a few centimeters to several meters.Durability: Tags can withstand harsh environments, unlike barcodes.Bulk Data Capture: Can read multiple tags simultaneously, speeding up processes. | Security Risks: Vulnerable to hacking or unauthorized cloning of tags.Interference: Signals can be disrupted by materials like metals or liquids.Limited Range for Passive Tags: Passive tags have shorter reading ranges.Initial Setup Cost: High upfront investment for tags, readers, and software.Standardization Problems: Compatibility issues across RFID standards.Unauthorized Tagging: Objects tagged without owner knowledge. |

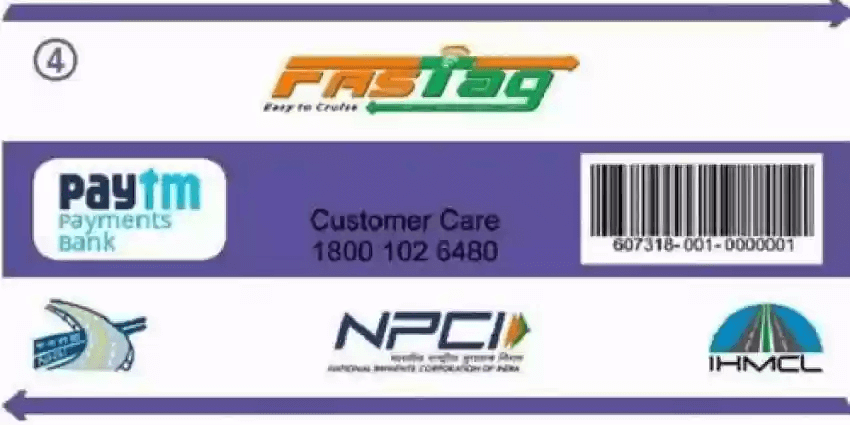

FASTag
FASTag is an electronic toll collection system in India that uses Radio Frequency Identification technology to facilitate cashless toll payments directly from a linked prepaid or savings account. It is managed by the National Highways Authority of India (NHAI).
- Technology:
- Utilizes RFID technology for automatic toll payments.
- Electronic Product Code (EPC): Unique 13-digit ID for each vehicle.
- Components:
- Passive RFID Tag: A passive tag affixed to the vehicle’s windscreen, containing a chip and antenna.
- Scanner: Reads the tag as the vehicle approaches the toll plaza, allowing for quick identification and fare calculation.
- Dimensions:Length: 100 mm, Width: 50 mm, Thickness: 0.8 mm
- Data Security: Managed by NPCI.
- Interoperability: FASTag is part of the National Electronic Toll Collection (NETC) initiative, allowing it to be used across all toll plazas in India regardless of the issuing bank.
Operation:
- The FASTag is scanned by an RFID reader as the vehicle approaches a toll booth.
- The chip transmits data such as vehicle class, weight, and FASTag ID to determine the toll fee.
- The toll amount is automatically deducted from the linked account without requiring the vehicle to stop.
Implementation:
- MoRTH initiative for cashless toll collection on highways.
- Launched as a pilot project in 2014, it has expanded significantly, with over 750 toll plazas across national and state highways accepting FASTag payments as of now.
- Mandatory Use: FASTag became mandatory for all vehicles in India starting February 15, 2021, with non-FASTag users facing double toll charges.
Benefits
- Ease of Payment: Cashless, time-saving.
- Speed: Near non-stop vehicle movement, reducing fuel costs.
- Environmental Benefits: Reduced air pollution, paper usage.
- Social Benefits: Less toll hassle, better highway analytics.
- Economic Benefits: Reduced management effort at toll plazas.
